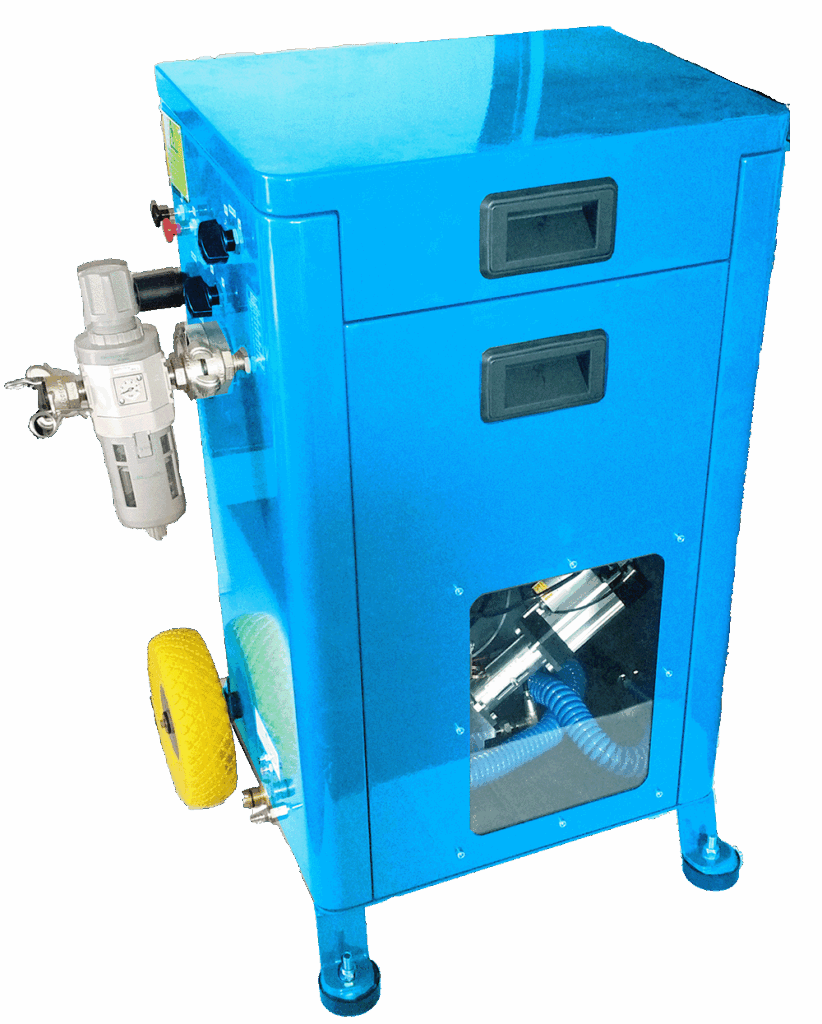

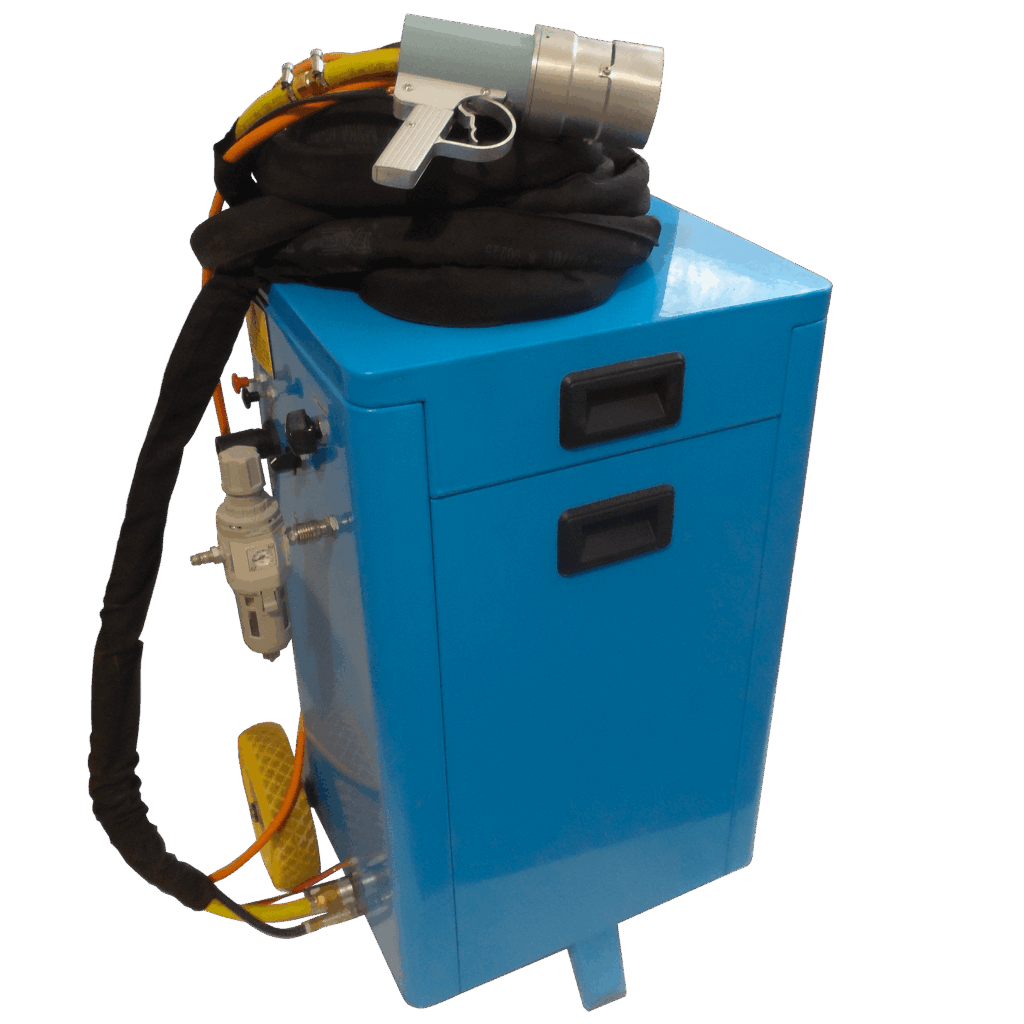

Spartacus Oil&Gas The most advanced technological breakthrough of recent years in the industrial coating of PP and PE joints. The Perfect Flame Spray Coating System for Pipe Contractors It delivers high performance and versatility in a compact system. The first technological advance in the pipe joint PP&PE coating industry in years.Main Features of Spartacus Flame Spray equipmentCompact, portable and light-weight;Easy to use, reliable and robust, minimal maintenance requirements;Very high powder flow feeding system;Large wheels for easier transport on rough terrain;Quick connect, colour coded hoses to machine;Powder volume controls on the machine (a guideline to recommended settings is available upon request);Suitable to apply a fully melted PP10 coating layer 2 to 12 mm and more in one operation.Only requires dry compressed air and LPG: Minimum AIR requirement: 1100 l per minute (40 cfm) ; dry cool air; 6 bar constant; LPG – minimum propane content: 50%-60%; minimum pressure: 3 bars constant. Field-applied Flame Sprayed PP & PE coatings using selected powder grades (e.g. IBIX Polypropylene PP10) are virtually the same as the factory-applied protective layers on the pipe. This ensures that when these coatings are applied they will form a perfect homogeneous bond with the parent coatings, i.e. the factory-applied PP layers. The result is a fully melted coating fused with the existing polyolefin on the pipe body forming a homogeneous coating that will provide unsurpassed, cost-effective protection of your field joints. In addition, factory applied Spartacus flame sprayed coatings lead to a faster process and the system is also ideal for 3LPP (3 Layer Polypropylene), 3LPE (3 Layer Polyethylene), coating of bends, buckle arrestors and custom fittings. Spartacus Application Guns Various gun sizes are available to suit different pipe sizes, all easily interchangeable (quick connect fittings to the machine) Small Gun suitable for smaller diameter pipe joints and for repairs and touch ups. Medium Gun Suitable for smaller diameter pipe joints. Large Gun Suitable for larger diameter pipe joints, bends, buckle arrestors. > Special Gun Version < New “Centurion” Gun – engineered for high-performance industrial coating applications. Designed to deliver a wider, elliptical spray pattern, ensuring faster application, superior coverage, and optimal fusion of PP and PE thermoplastic powders. Benefits Wider spray pattern (over 10 cm with the Large Centurion Gun);High volume in elliptical pattern;Faster spraying and more uniform layers (bigger powder flow spread over a much larger area);Easier overlapping of passes and better powder flowing out;No stripes or powder build-ups on restricted areas which could result into entrapped air;Perfect melting of the powder coat even at high powder feeding rates.New Guns with “vents” on the gun tip optimizing air ventilation in the gun and keeping the gun cooler. New Extra-Cooling System with heat exchanger for prolonged flame spraying specially useful in automatic coating equipment. GET IN TOUCH! Discover and stay updated on OUR NEWS and PROMOTIONS Contact US! Industries Served Flame Spray technology can be used across a wide range of industrial sectors, ensuring high performance and maximum versatility. 3LPP BUCKLE ARRESTORS FULL SYSTEM AUTOMATICALLY PP FLAME SPRAYED BUCKLE ARRESTOR REPAIR FLAME SPRAY TOP Documents IT IBIX INDUSTRIAL Flyer Spartacus Oil&Gas EN IBIX INDUSTRIAL Flyer Spartacus Oil&Gas
